1 5
SKU: 911-7E25-010

MSI MAG Z790 TOMAHAWK MAX WIFI | Placa Base

299,00€
IVA incl

Fecha de entrega
Recíbelo entre el y el

Puntos MSI
Gana 180 Los puntos MSI se pueden utilizar para canjear regalos gratuitos como:
  • Cupón de Steam/Nintendo/XBOX
  • Cupón de Carrefour
  • Cupón de Foot Locker
puntos aprox. si ya participas en el Programa de Recompensas MSI

Garantía
3 Años Garantía

Pago y seguridad

Incluye regalo

MAG Z790 TOMAHAWK MAX WIFI

  • Compatible con procesadores Intel® Core™ de 14ª/ 13ª/ 12ª generación, procesadores Intel® Pentium® Gold y Celeron® para zócalo LGA 1700.
  • Admite memoria DDR5, hasta 7800+(OC) MHz
  • Diseño de alimentación mejorado: disposición de alimentación en espejo 16+1+1, conectores de alimentación de CPU duales de 8 patillas, Core Boost, Memory Boost.
  • Experiencia de juego ultrarrápida: Ranura PCIe 5.0 Lightning Gen 5 x2, M.3.2 USB 2 Gen 2x2
  • Solución térmica premium: Disipador térmico ampliado, almohadillas térmicas MOSFET de 2 W/mK, choke pads adicionales y M.2 Shield Frozr para un sistema de alto rendimiento y una experiencia de juego ininterrumpida.
  • AUDIO BOOST: Recompensa a tus oídos con una calidad de sonido de estudio para disfrutar de la experiencia de juego más envolvente.
  • PCB de alta calidad: PCB de 6 capas fabricado con cobre de 2 onzas de espesor y material de nivel de servidor

Chipset INTEL Z790
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/

6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 2x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage 4x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
8x SATA 6G (Qty)
*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot.
*SATA_1 & SATA_2 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*SATA_A1_A2 do not support RAID function.
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN Intel® 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details.

Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
LED FEATURE 4x EZ Debug LED

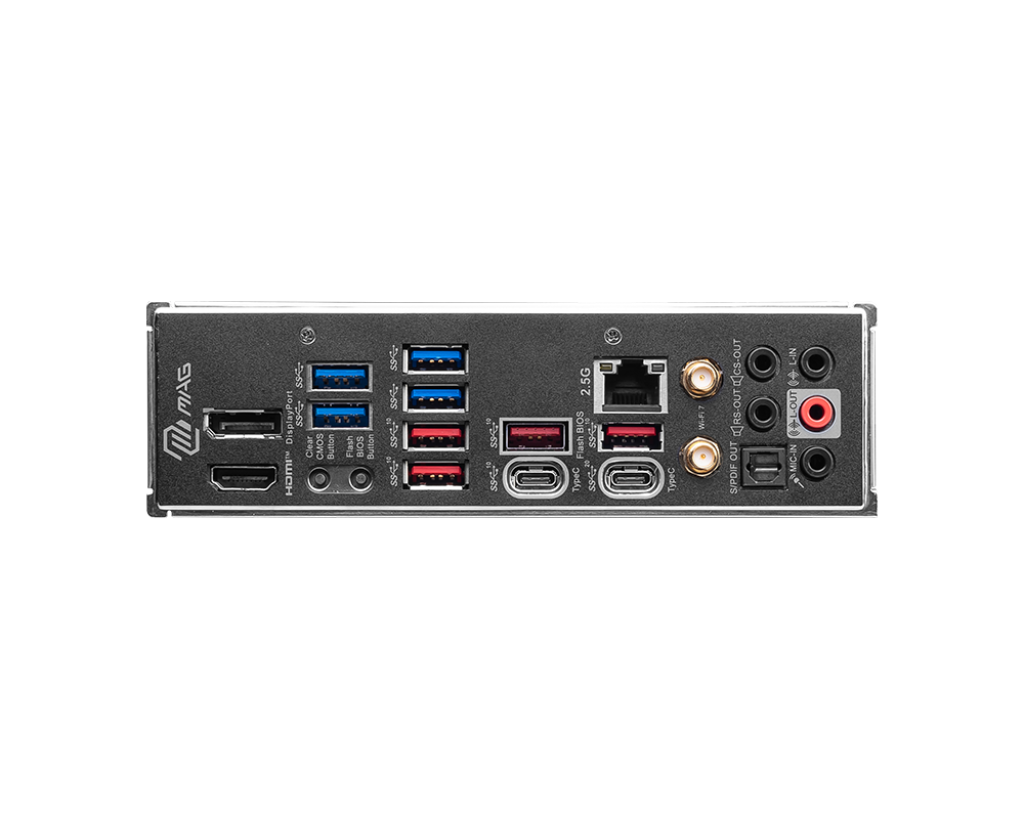

BACK PANEL PORTS
  1. Display Port
  2. USB 3.2 Gen 1 5 Gbps (Type-A)
  3. USB 3.2 Gen 2 10Gbps (Type-A)
  4. 2.5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. HDMI™
  8. Clear CMOS
  9. Flash BIOS
  10. USB 3.2 Gen 2 10Gbps (Type-A)
  11. USB 3.2 Gen 2 10Gbps (Type-C)
  12. USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info ATX
243.84mmx304.8mm

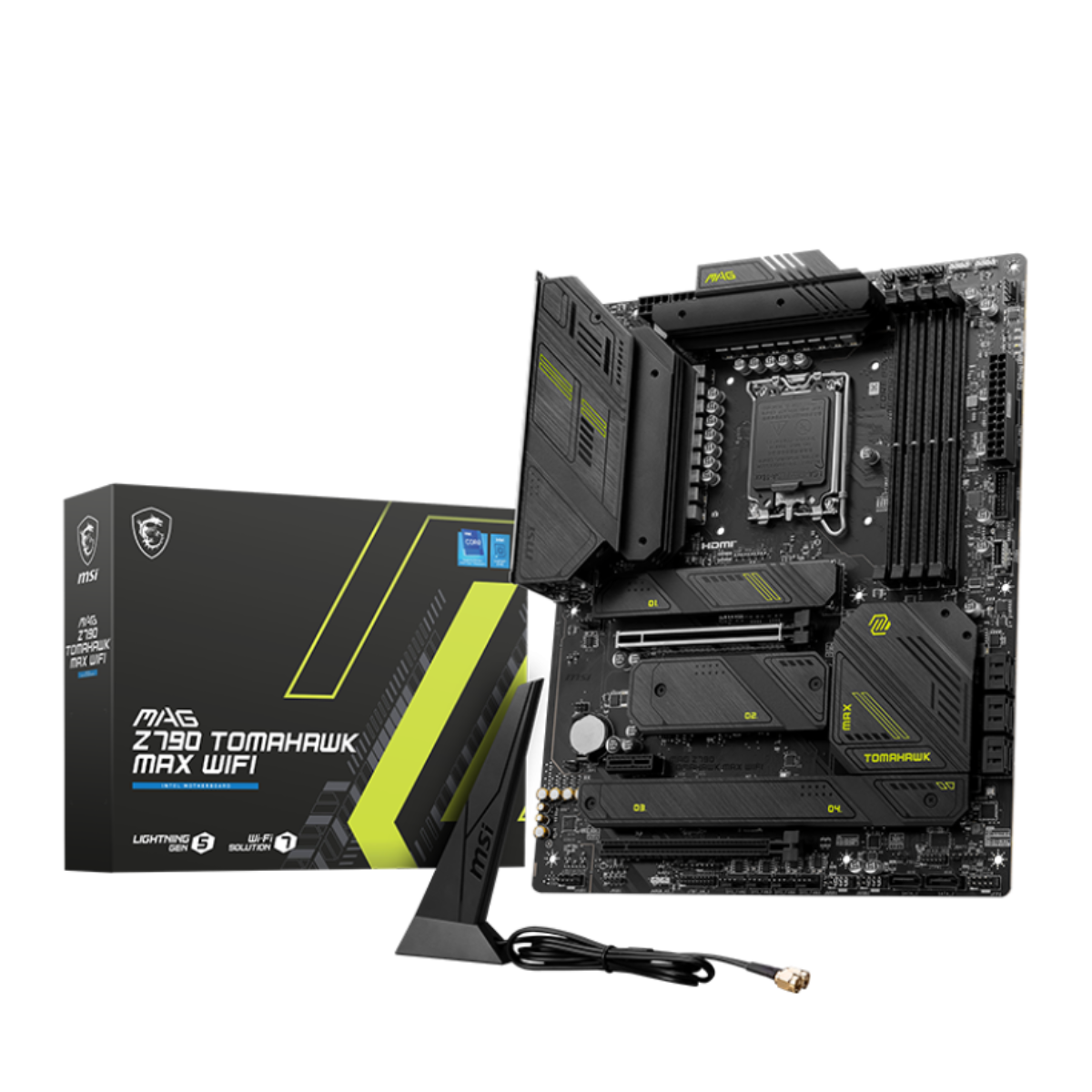

BOX CONTENT
MSI España

MSI MAG Z790 TOMAHAWK MAX WIFI | Placa Base

299,00€

MAG Z790 TOMAHAWK MAX WIFI

  • Compatible con procesadores Intel® Core™ de 14ª/ 13ª/ 12ª generación, procesadores Intel® Pentium® Gold y Celeron® para zócalo LGA 1700.
  • Admite memoria DDR5, hasta 7800+(OC) MHz
  • Diseño de alimentación mejorado: disposición de alimentación en espejo 16+1+1, conectores de alimentación de CPU duales de 8 patillas, Core Boost, Memory Boost.
  • Experiencia de juego ultrarrápida: Ranura PCIe 5.0 Lightning Gen 5 x2, M.3.2 USB 2 Gen 2x2
  • Solución térmica premium: Disipador térmico ampliado, almohadillas térmicas MOSFET de 2 W/mK, choke pads adicionales y M.2 Shield Frozr para un sistema de alto rendimiento y una experiencia de juego ininterrumpida.
  • AUDIO BOOST: Recompensa a tus oídos con una calidad de sonido de estudio para disfrutar de la experiencia de juego más envolvente.
  • PCB de alta calidad: PCB de 6 capas fabricado con cobre de 2 onzas de espesor y material de nivel de servidor

Chipset INTEL Z790
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/

6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 2x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage 4x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
8x SATA 6G (Qty)
*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot.
*SATA_1 & SATA_2 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*SATA_A1_A2 do not support RAID function.
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN Intel® 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details.

Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  1. Display Port
  2. USB 3.2 Gen 1 5 Gbps (Type-A)
  3. USB 3.2 Gen 2 10Gbps (Type-A)
  4. 2.5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. HDMI™
  8. Clear CMOS
  9. Flash BIOS
  10. USB 3.2 Gen 2 10Gbps (Type-A)
  11. USB 3.2 Gen 2 10Gbps (Type-C)
  12. USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info ATX
243.84mmx304.8mm
BOX CONTENT
