SKU: 911-7C56-093

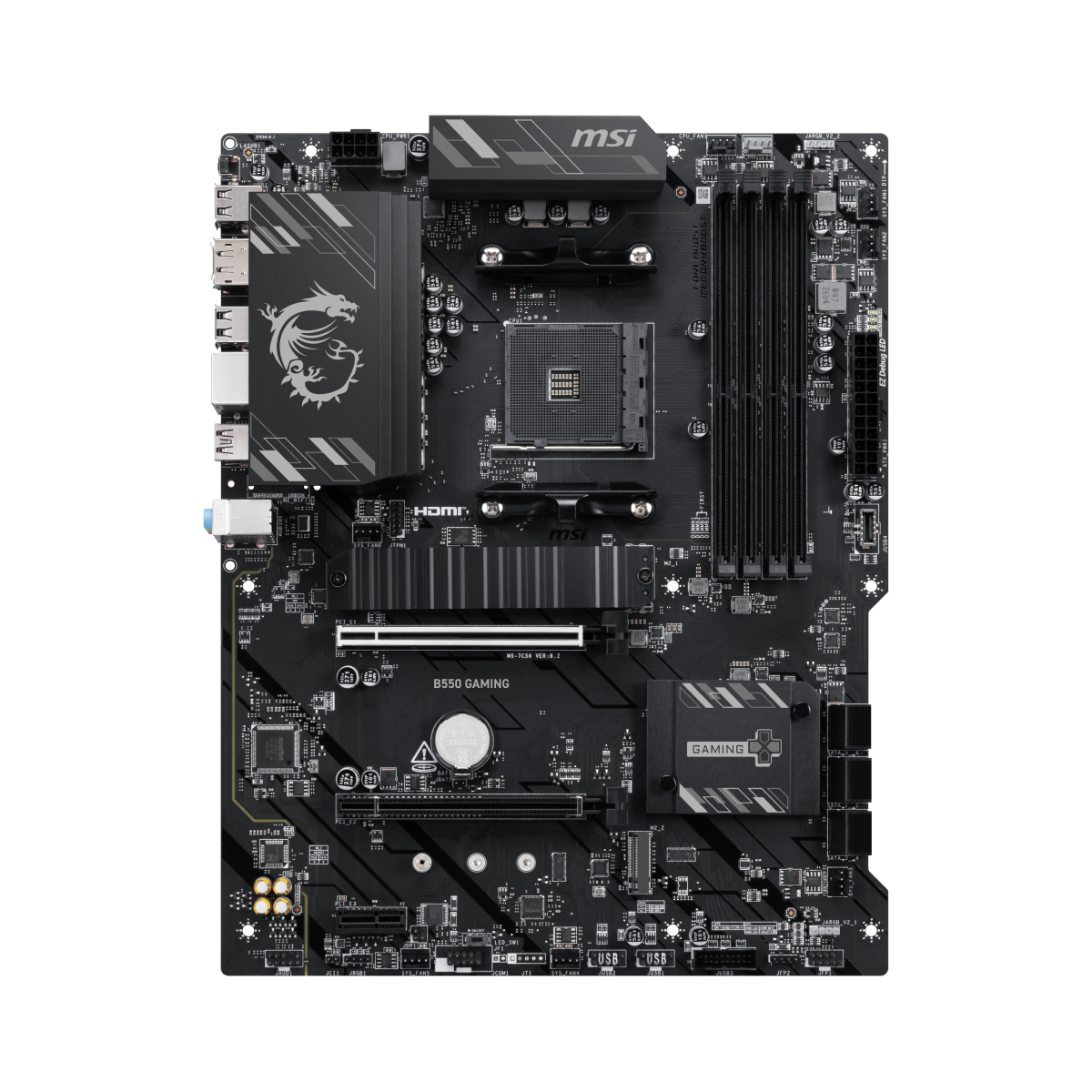

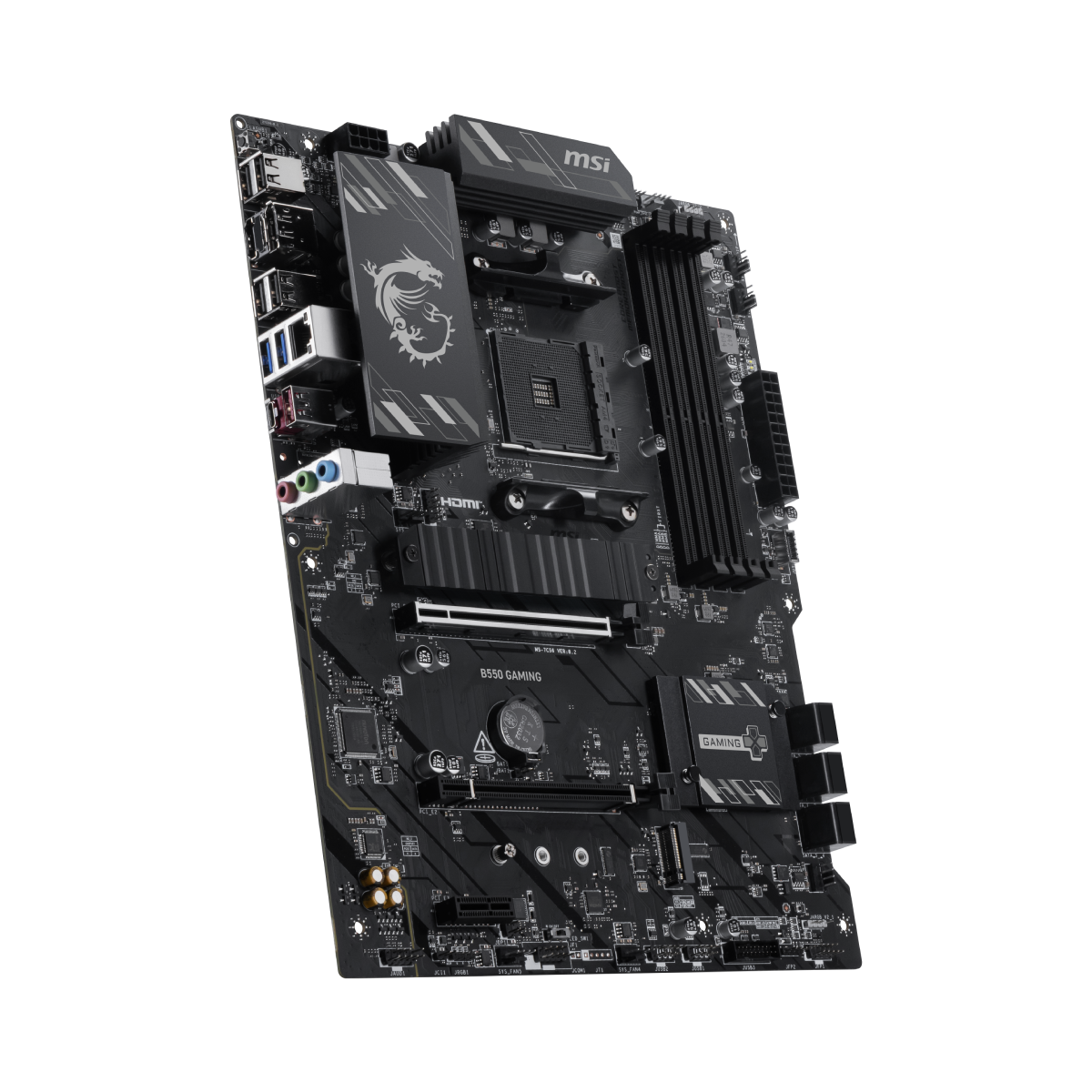

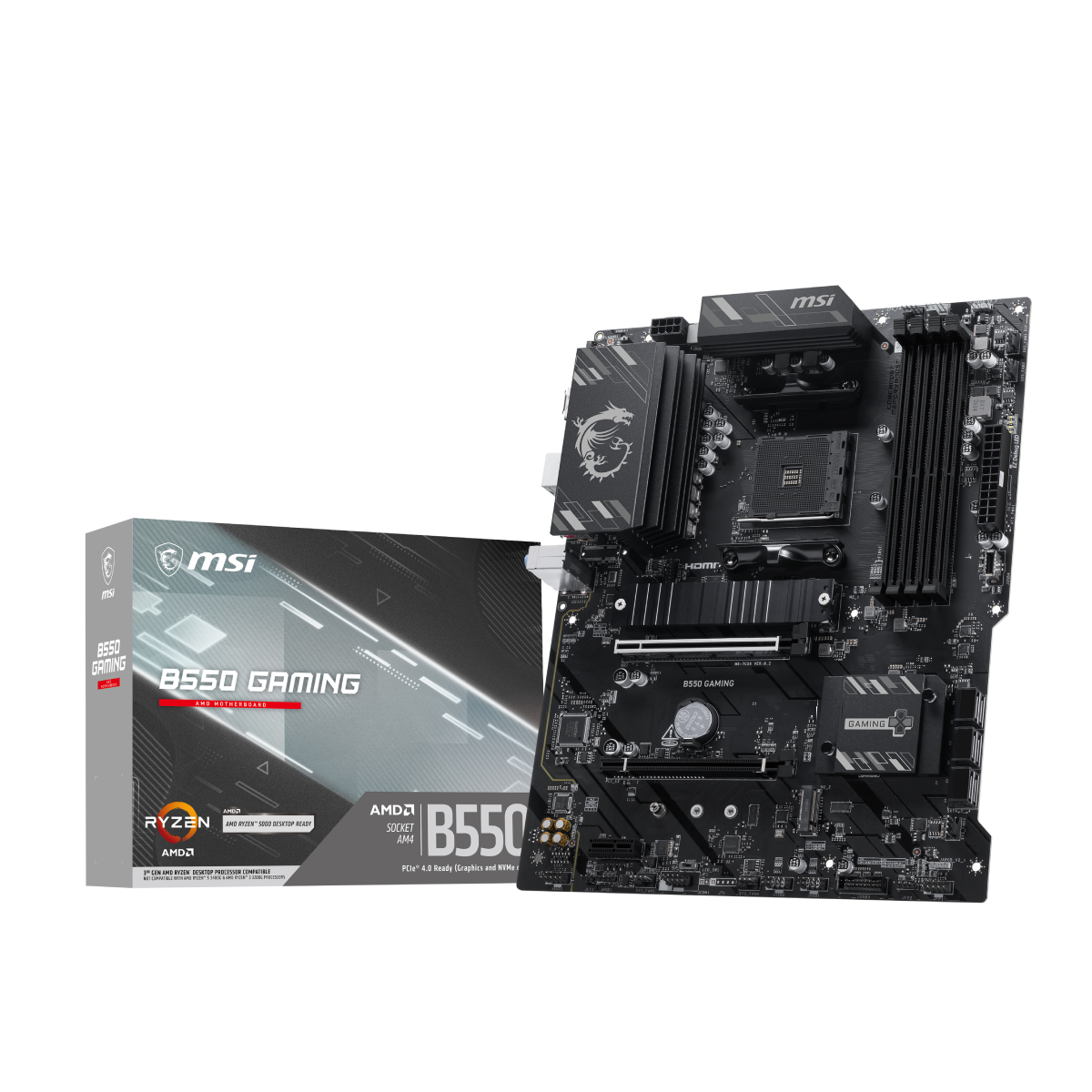

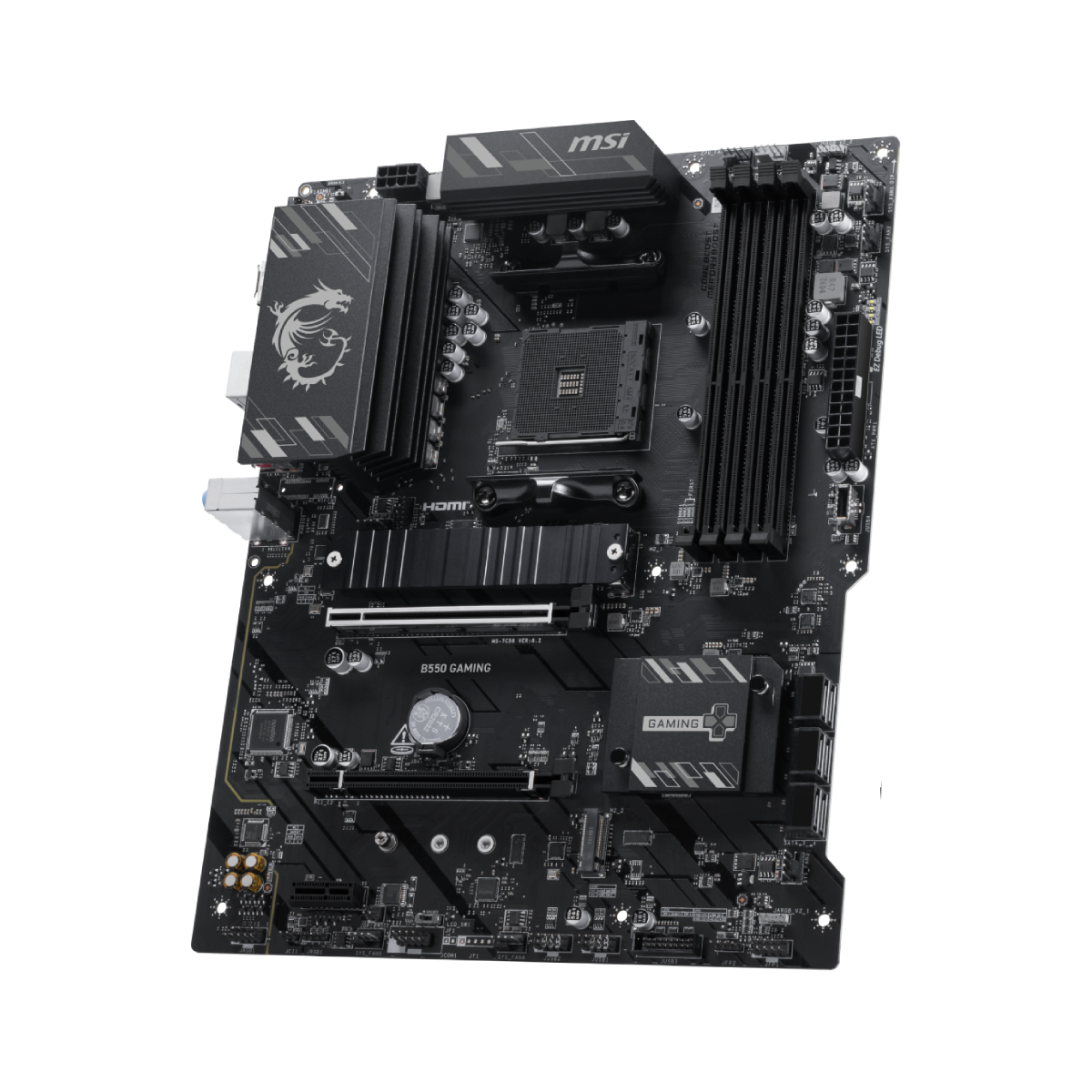

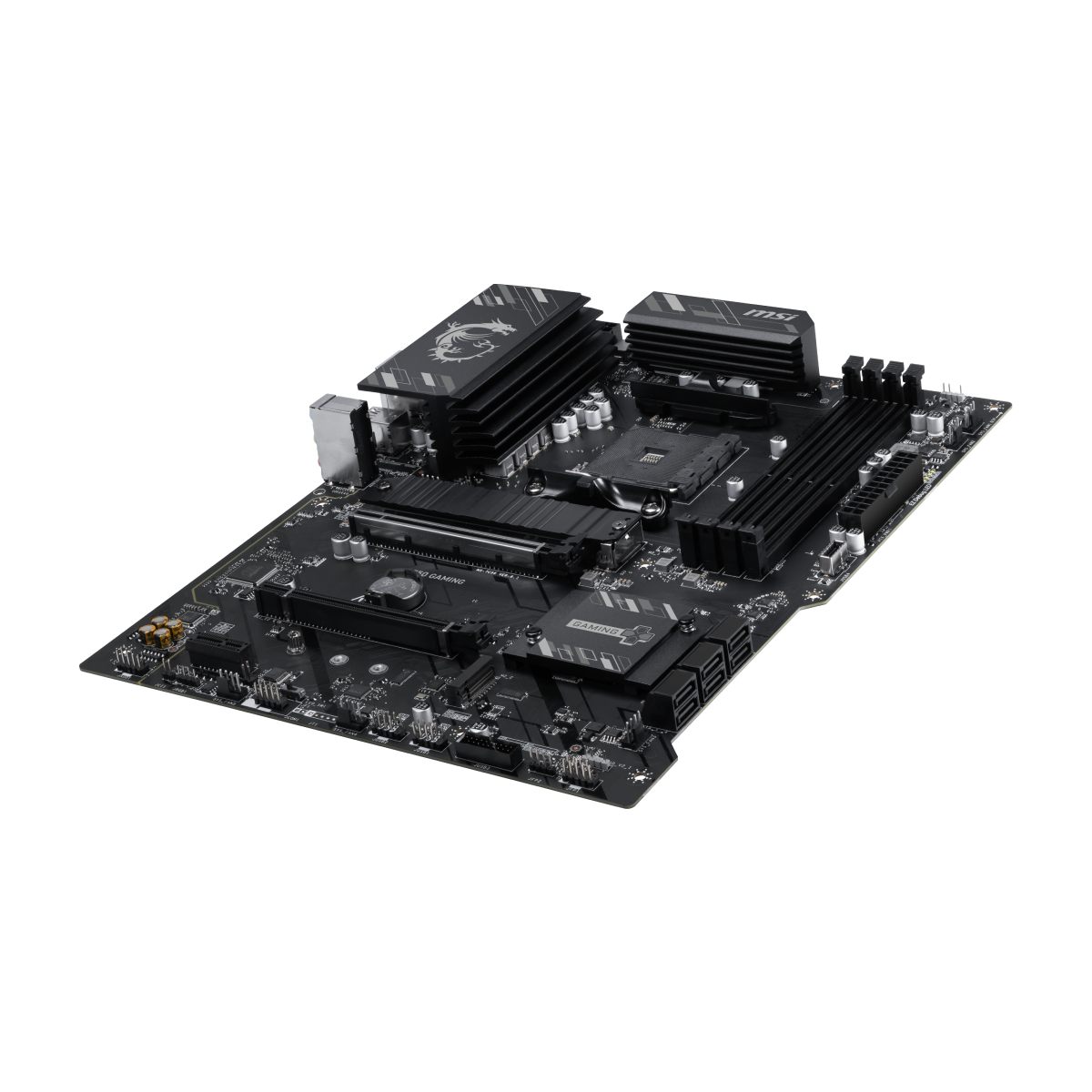

MSI B550 GAMING | Placa Base

144,90€
IVA incl
Fecha de entrega
Puntos MSI
Gana 87 Los puntos MSI se pueden utilizar para canjear regalos gratuitos como:

  • Cupón de Steam/XBOX
  • Cupón de Carrefour
Más detalles y condiciones aquí
puntos si estás suscrito al Programa de Recompensas
Garantía
3 años de garantía Garantía legal UE
Pago y seguridad

Incluye regalo

  • AMD B550
  • Socket AM4

B550 GAMING

Características:

  • Compatible con los procesadores AMD Ryzen™ de las series 5000, 5000 G, 4000 G y 3000
  • Compatible con memoria DDR4, hasta 4800+ MHz (overclocking)
  • Experiencia gaming ultrarrápida: Slot PCIe 4.0, M.2 Lightning Gen 4 x4, USB tipo C frontal
  • EZ DIY: LED EZ Debug y montaje EZ
  • Audio Boost: Deleita tus oídos con una calidad de sonido de nivel profesional para disfrutar de la experiencia gaming más envolvente
  • MSI Center: Un software totalmente nuevo que integra todas las herramientas exclusivas de MSI con una interfaz de usuario intuitiva.

Chipset AMD B550
CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Socket AM4
Memory

4x DDR4, Maximum Memory Capacity 128GB

Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 4800+ MHz
  • 1DPC 2R Max speed up to 3866+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 3600+ MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory

Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics
  • 1x HDMI™ (Support HDMI™ 1.4, maximum resolution of 4K 30Hz*)
  • 1x DisplayPort (Support DisplayPort 1.2, maximum resolution of 4K 60Hz*)

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot
  • 2x PCI-E x16 slot (Qty)
  • 1x PCI-E x1 slot (Qty)
    • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
    • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

*The supported specification depends on installed processor.
**When installing PCIe SSD in M.2_2 slot, PCI_E2 slot will be unavailable.

Audio Realtek® ALC897
7.1-Channel High Definition Audio
Storage
  • 2x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
    • M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
  • 6x SATA 6G (Qty)
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
  • 1x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
LAN Realtek® 8111H 1G LAN
Internal IO
  • 1x Power Connector (ATX_PWR)
  • 1x Power Connector (CPU_PWR)
  • 1x CPU Fan
  • 1x PUMP_SYS Fan
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector (JRGB)
  • 1x TPM pin header (Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 5Gbps Type C ports
LED FEATURE 4x EZ Debug LED

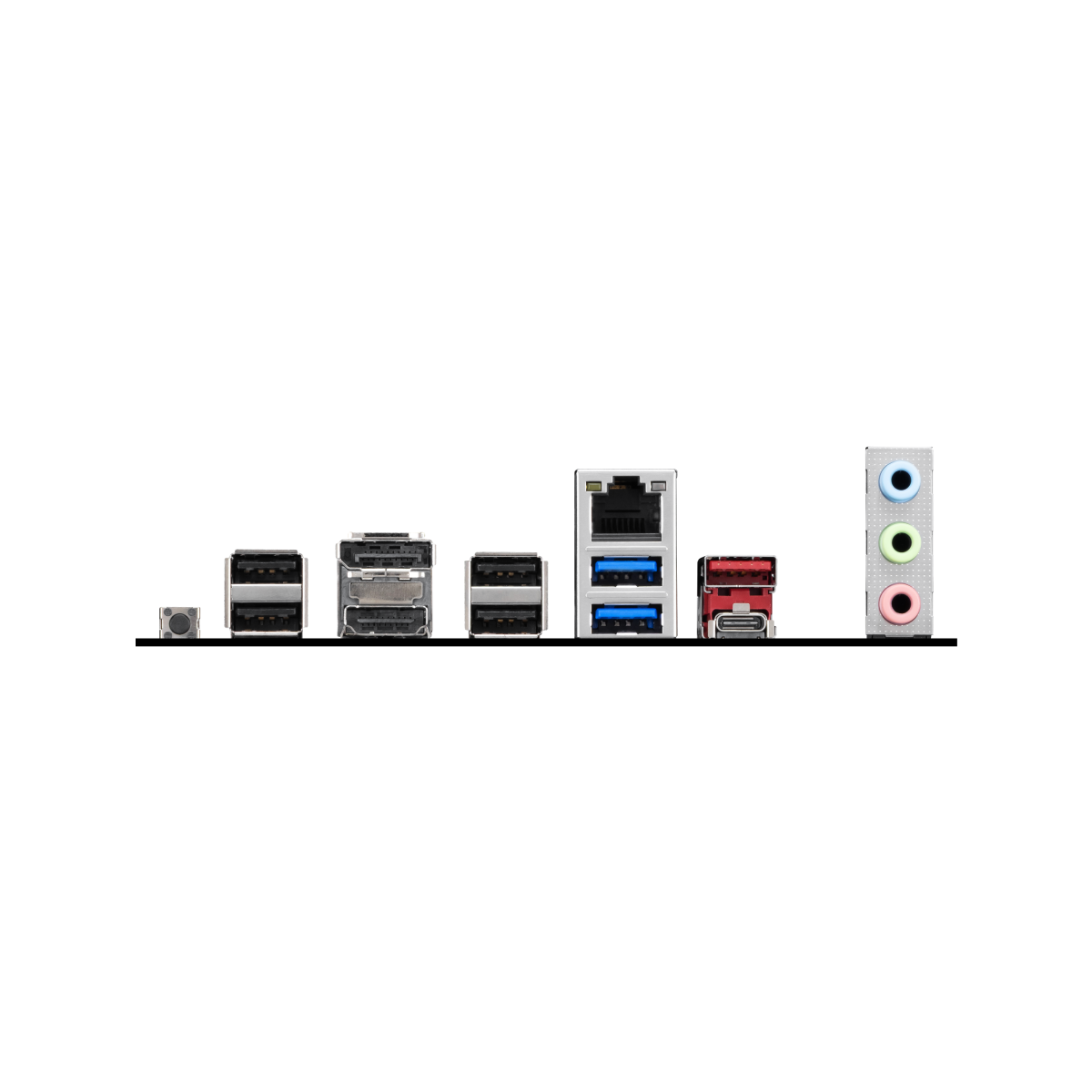

BACK PANEL PORTS
  1. USB 2.0
  2. DisplayPort 1.2
  3. 1G LAN
  4. USB 10Gbps (Type-A)
  5. Audio Connectors
  6. Flash BIOS Button
  7. HDMI™
  8. USB 2.0
  9. USB 5Gbps (Type-A)
  10. USB 10Gbps (Type-C)
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
Placa base de MSI B550 GAMING
