La placa base MPG X870E CARBON WIFI es compatible con los procesadores AMD Ryzen de las series 9000/8000/7000.
- Form Factor: ATX
- Tipo de Socket: AM5
- Chipset: AMD X870
MSI MAG X870 TOMAHAWK WIFI | Placa Base está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Incluye regalo

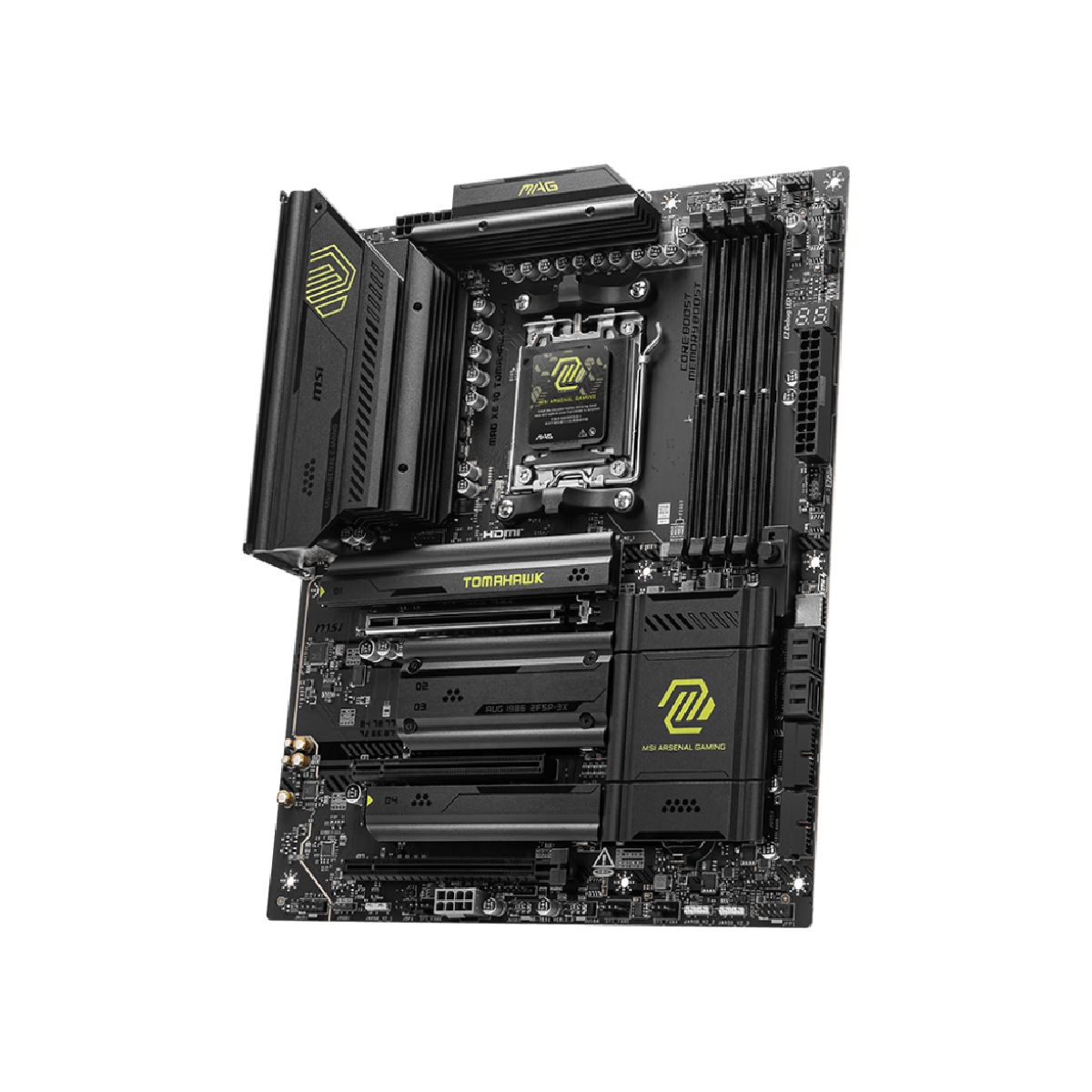

La MAG X870 TOMAHAWK WIFI es una placa base ATX orientada a Gaming construida con un sistema de alimentación de 14 Duet Rail y el último chipset AMD X870 que admite procesadores de escritorio de la serie AMD Ryzen 9000/8000/7000, con PCIe 5.0, 5G LAN, Wi-Fi 7 y DDR5 que equilibra tanto el valor como el hardware premium.
La placa base MPG X870E CARBON WIFI es compatible con los procesadores AMD Ryzen de las series 9000/8000/7000.
Con la exclusiva tecnología Core Boost y las funciones EZ OC Tuning, la MAG X870 TOMAHAWK WIFI puede soportar cargas de energía de CPU pesadas para soportar configuraciones de juego que exigen mucho del sistema:
*1DPC 1R Frecuencia máxima de overclocking 8400+ MT/s, compatible con AMD EXPO.
La ranura PCI Express Steel Armor II de MSI está reforzada con unos puntos de soldadura adicionales en la placa base, lo que permite soportar un 21 % más de peso de la tarjeta gráfica en comparación con la Steel Armor de primera generación.
**La tecnología de montaje superficial (SMT) de MSI mejora la claridad de la señal.
La placa base MPG X870E CARBON WIFI cuenta con slots M.2 de MSI:
Los diseños DIY Friendly optimizan el proceso y la experiencia de ensamblaje.
Chipset | AMD X870 |
CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC) 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC) 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* *CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
|
Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Slot | 3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot.You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot |
Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
Storage | 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports *** PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot. **** Please refer to the manual for M.2 SSD heatsink restrictions |
Multi-GPU | AMD MULTI-GPU Support |
RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
LAN | Realtek® 8126-CG 5G LAN |
Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 6x System Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
WIRELESS LAN & BLUETOOTH | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
LED FEATURE | 4x EZ Debug LED 1x EZ Digit Debug LED |
BACK PANEL PORTS | |
OPERATING SYSTEM | Support for Windows® 11 64-bit |
BOX CONTENT |
|
PCB Info | ATX 304.8mmx243.84mm |
