La placa base PRO H510M-B es compatible con procesadores Intel Core de 10ª generación, Pentium Gold y Celeron.
- Formato: Micro-ATX
- Socket: LGA 1200
- Chipset: Intel H470
Historial ultimos 30d
22.06.2025 | 59,99 € |
No se ha podido cargar la disponibilidad de recogida
Incluye regalo

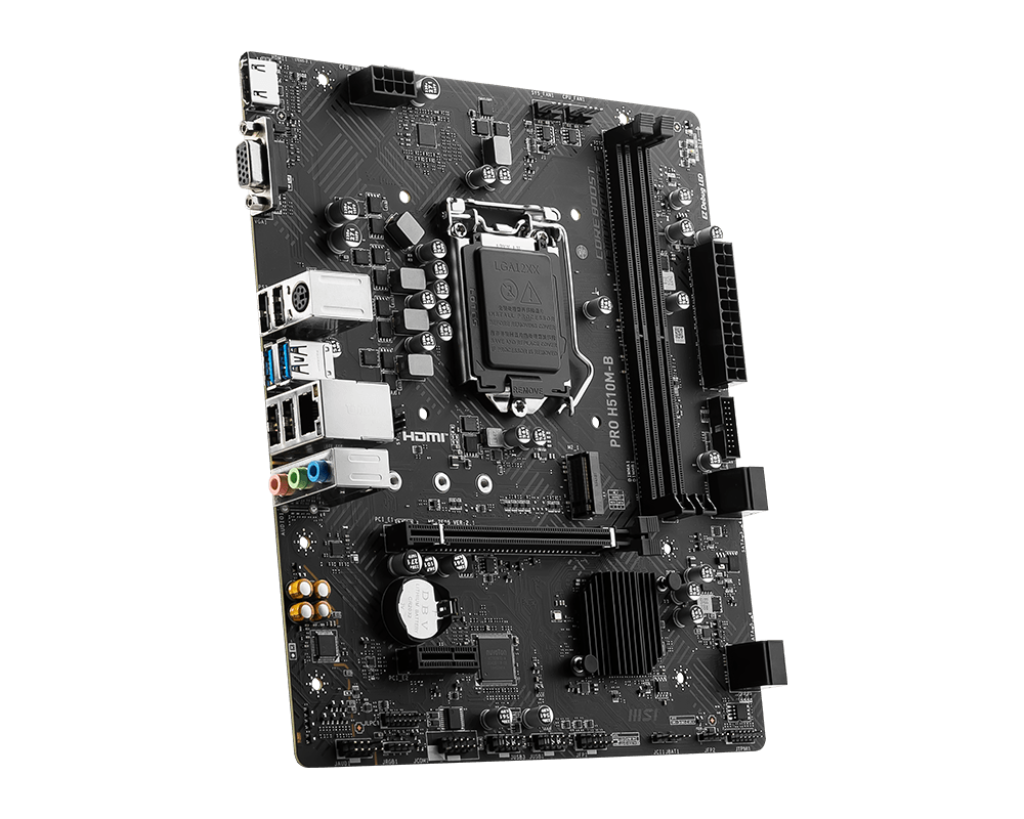

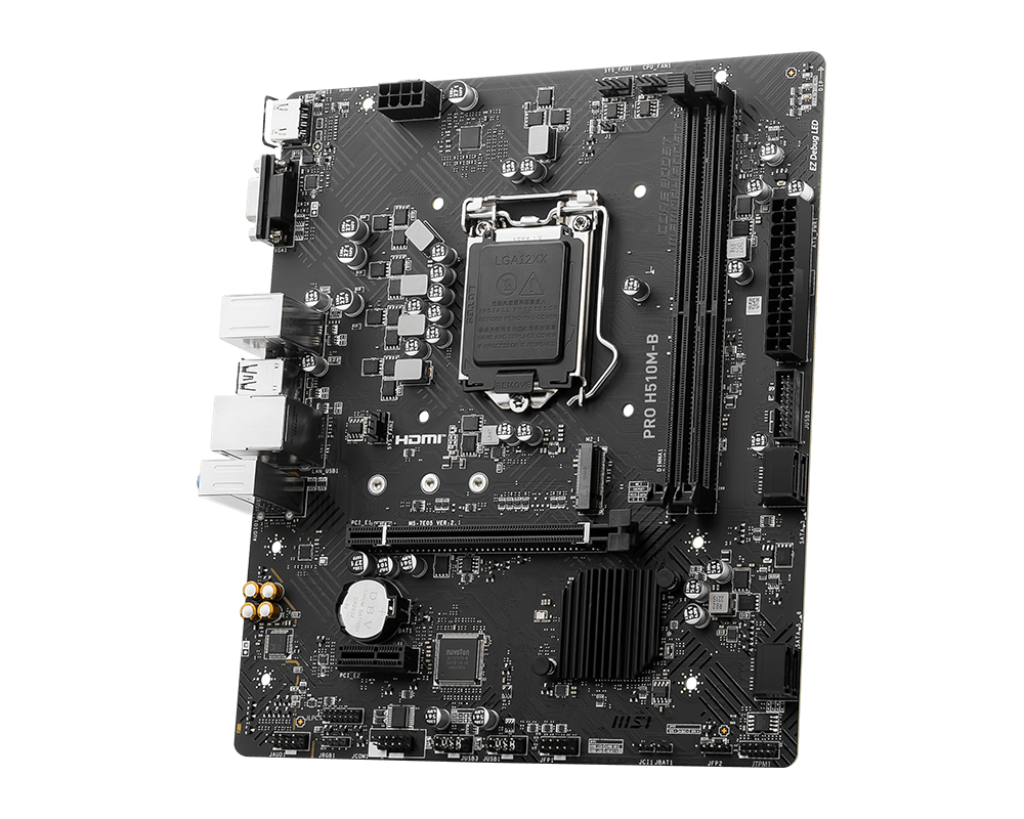

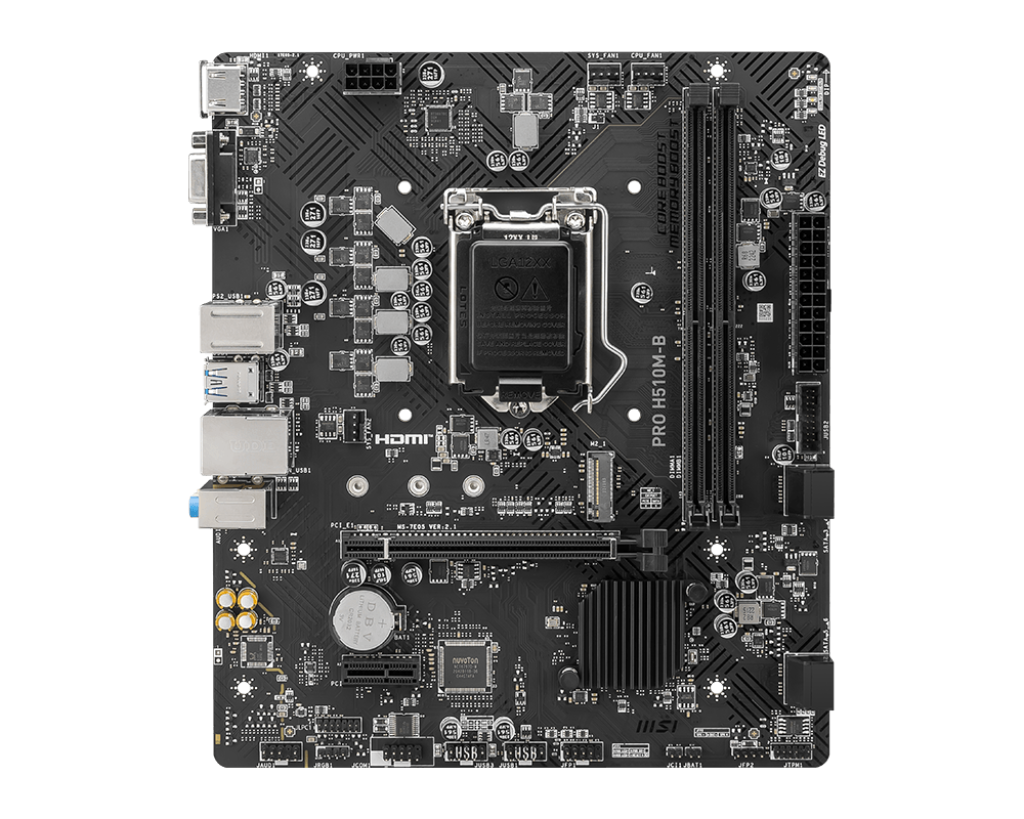

La PRO H510M-B es una placa base micro-ATX orientada a entornos profesionales, equipada con el chipset Intel H470 e incluye conectividad de vídeo compatible con dispositivos legacy.
La placa base PRO H510M-B es compatible con procesadores Intel Core de 10ª generación, Pentium Gold y Celeron.
Los slots MSI PCI Express Steel están reforzados con puntos de soldadura adicionales para soportar el peso de tarjetas gráficas pesadas.
La placa base PRO H510M-B incorpora un slot M.2 Gen3 de MSI:
Chipset | INTEL H470 |
CPU | Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket |
Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
Storage | 1x M.2 (Qty) M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) |
LAN | Realtek® 8111H Gigabit LAN |
Onboard Graphics | 1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Slot | 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
LED FEATURE | 4x EZ Debug LED |

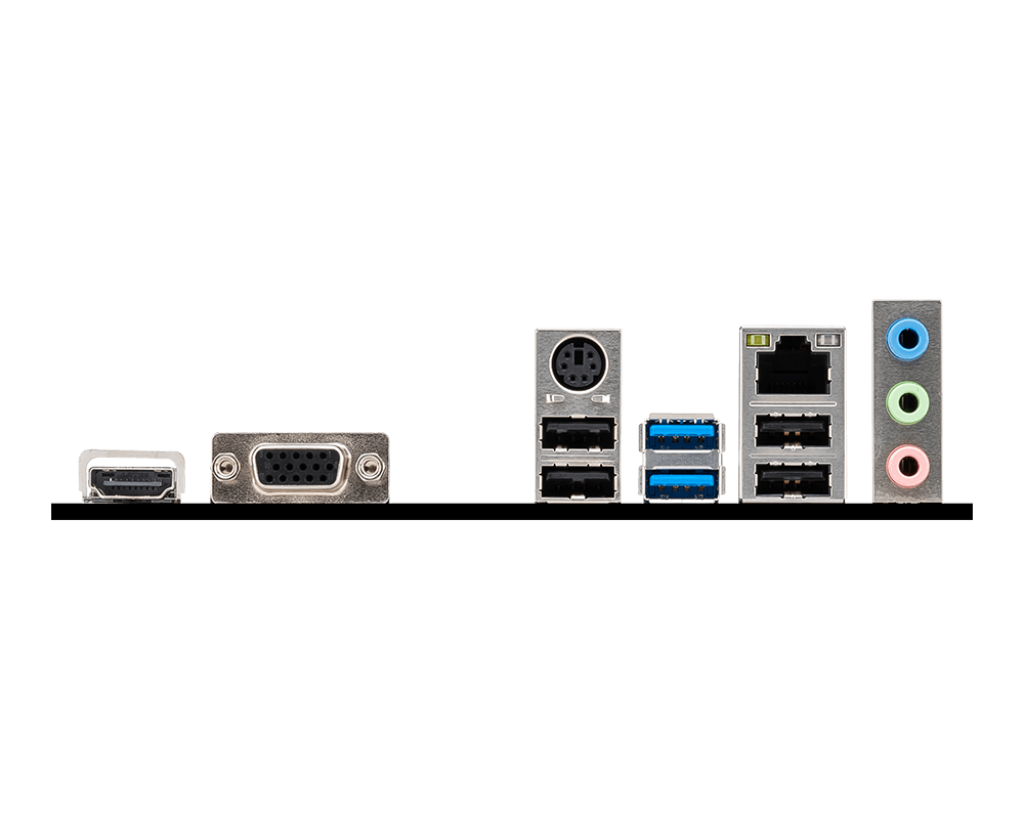

BACK PANEL PORTS |
![]()
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB Info | mATX 202mmx236mm |

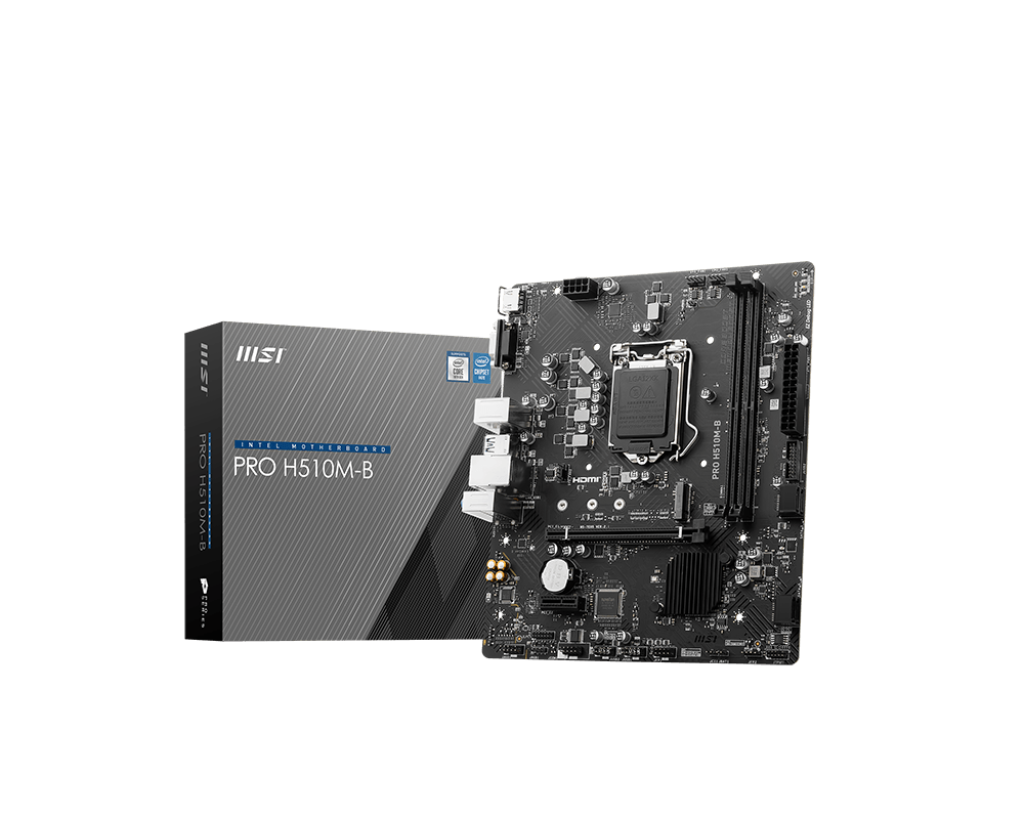

BOX CONTENT | ![]() |
